YS-D

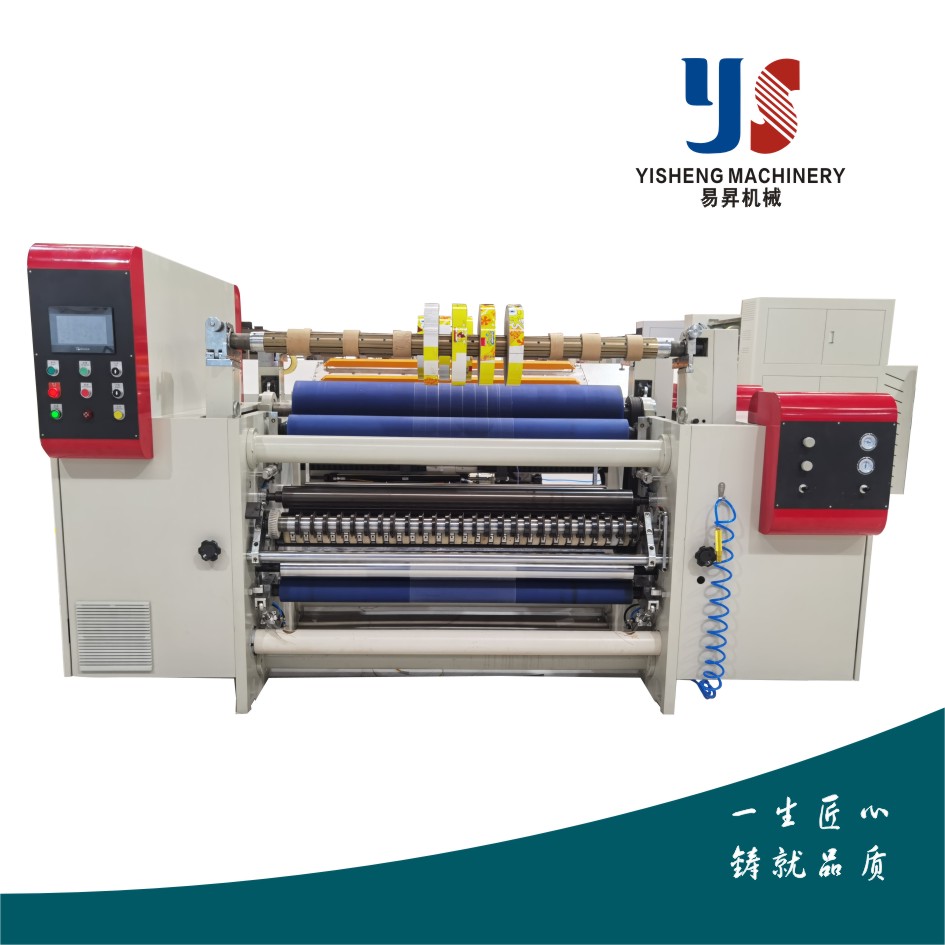

Slitting And Rewinding Intelligent Machine For Surface Rolling
-

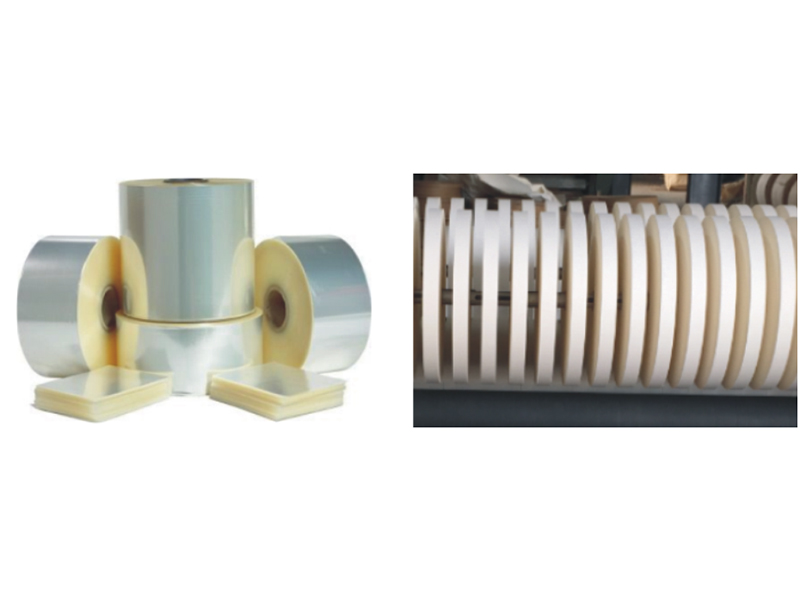

This machine is suitable for slitting rolling? materials? such as paper, aluminum foil, PVC, plastic film, insulation material, etc.?。
This motor is equipped with frequency converter timing device, constant tension magnetic powder control system for unwinding, photoelectric auto error-correction , two pieces magnetic powder clutches, main motor for controlling the center rewinding can be touched with surface, double shafts rewinding interlaced without meeting. It also has the function of meter can
be setup in advance and auto stop working, etc.
| 型號(hào) | Model | YS-1600D | YS-2000D |
| 放卷最大寬度 | Max. Width of unwinding | 1600mm | 2000mm |
| 放卷最大直徑 | Max. Diameter of unwinding | ￠1400mm | ￠1400mm |
| 分切最小寬度 | Min. Width of slitting | 50mm | 50mm |
| 收卷最大直徑 | Max. Diameter of rewinding | ￠620mm | ￠620mm |
| 整機(jī)功率 | Total power | 4kw | 5.5kw |
| 機(jī)器重量 | Weight | 2000kg | 2200kg |
| 外形尺寸 | Overall dimension (LxWxH) | 3800x2900x3500(mm) | 3800x3300x3500(mm) |
